PATCHBAYS
30
HPC Patchbay Series
Features and Benefits
? Available in 1RU or 2RU versions
? Available with or without connectors
? HPC Series connectors are
compatible with Neutrik Speakon ?
connectors
? Cable tie bar takes weight of the
cables off the terminations
? Rugged aluminum channel
? Silk-screen designation area makes
it easy to re-label channels
Panel Materials
HPCPK324F
Housing: Thermoplastic UL
94V-0 rated
Contacts: Silver-plated over
copper alloy
Frame: Aluminum, black anodized
Cable Tie Bar: Steel, black epoxy

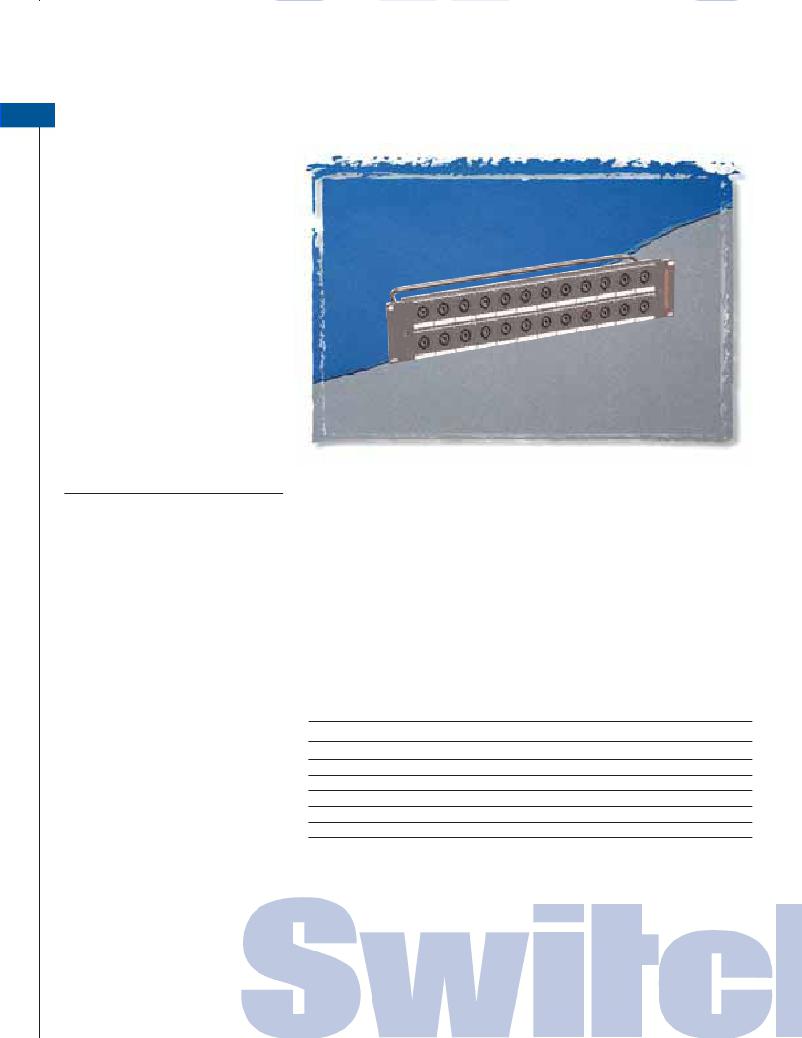

The HPC Patchbay features a 19" rack unit loaded with HPC Series connectors.
HP Connector Specifications
Mechanical
Shock: Per Mil-Std 202,
Method 213B, Cond. K
Vibration: Mil-Std 202,
Method 201A
Life: 1,000 rotational cycles
Cable Range (cord mount): 10AWG,
0.560" cable OD maximum
Electrical
Voltage Rating: 1,500 AC RMS,
per Mil-Std 202, Method 301
Current Rating (Faston? terminals):
Available with either 0.250" Faston ? terminals or 0.187" Faston ? terminals. One
rack unit height versions come with 12 HPC connectors, two rack unit height
versions come with 24 HPC connectors. All versions have a rugged cable tie bar,
which takes the weight of the cabling away from the connections.
Materials
Housings: Thermoplastic
UL 94V-0 rated
Seal Rings: Thermoplastic rubber
Contacts: Silver-plated over
copper alloy
50A RMS w/10AWG wire,
normal ambient, per UL 1977
Current Rating (PC terminals):
Ordering Information
Part Number Height
Description
30A per UL 1977
Contact Resistance: 1m , 1.5m
after 1,000 insertion/withdrawals
Insulation Resistance: .2T
Environmental
Salt Spray: Mil-Std 202, Method
HPCPK112F
HPCPK112F1
HPCPK1B
HPCPK324F
HPCPK324F1
HPCPK3B
1.75"
1.75"
1.75"
3.50"
3.50"
3.50"
12 connectors,
12 connectors,
Blank panel
24 connectors,
24 connectors,
Blank panel
0.250" Fastons
0.187" Fastons
0.250" Fastons
0.187" Fastons
101D, Cond.B
Thermal Shock: Mil-Std 202,
Method 107G
Temperature Limits: -55?C to +85?C
Moisture Resistance: Mil-Std 202,
Method 106E
Life @ Ambient Temperature:
Mil-Std 202, Method 108A
Touchproof: IEC 65 and 1010-1
IP Rating: IEC 529, IP 25
